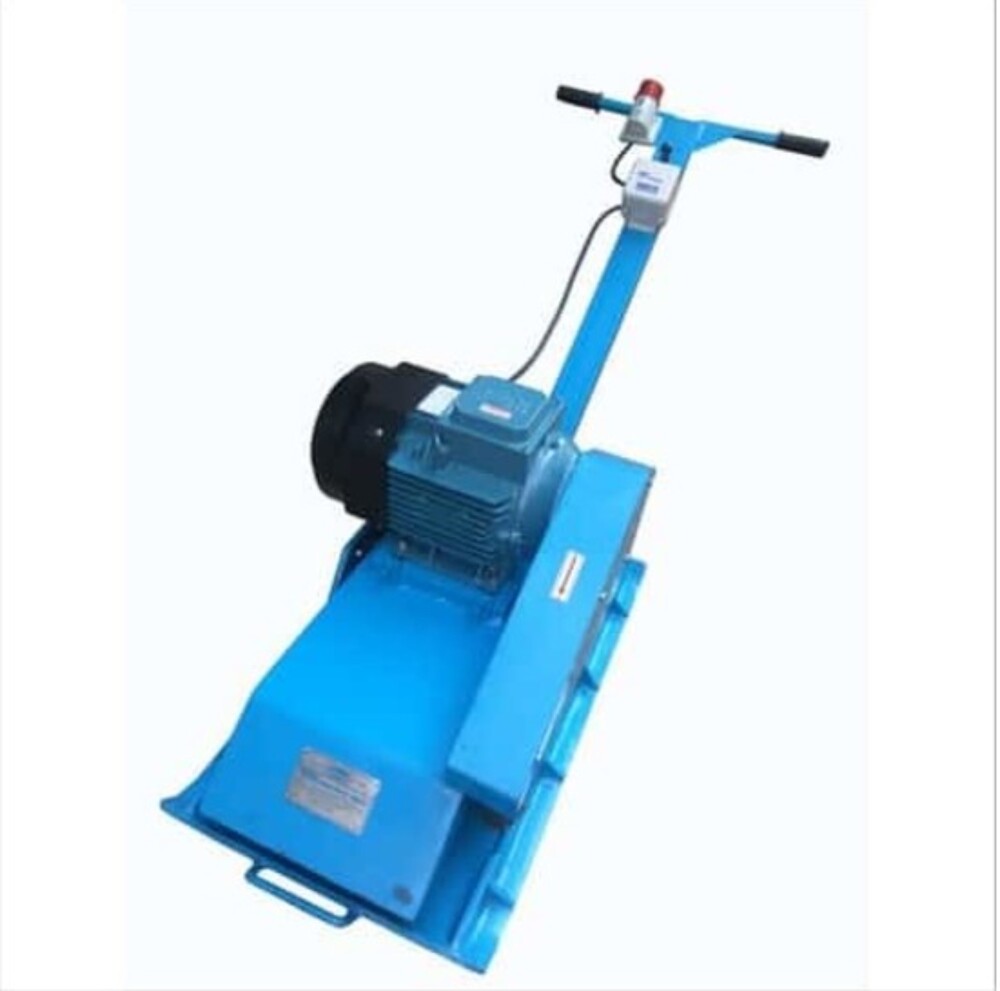

Earth Plate Compactor

Earth Plate Compactor
Earth Plate Compactor
Send Inquiry
Product Code : EPC 06
Product Description

The provided earth plate compactor is auto-propelled, compact and low-weight with elevated frequency, high forces and fewer amplitude features. This is completely based on reciprocal pressure generation principle by impulse vibrator of frequency undirectional that induces the forward and ramming movement. It can successfully compact denser layers of semi-cohesive and non-cohesive soils with an optimum density of over 98% in minimum passes.

Inferable to its unmatched properties, it is widely used in the mentioned below areas:

  • Backfill jobs
  • Bridge approaches, etc.
  • Channel embankments
  • Factory floor
  • Foundations
  • Key trenches
  • Manoeuvres close to abutments holding walls
  • Non-cohesive soil
  • Pilling
  • Subgrades
Prime Features:
  • Mechanism is based on revisable pressure generation principle
  • Has frequency unidirectional impulse vibrator for forward and ramming motion
  • Effectively compacts thick layers of cohesive soils
  • Has optimum proctor density
  • Requires less passes for job completion
Technical Details:
  • This ensures deeper compaction depth effect in soil achieving maximum proctor density 95% if fewer passes, the gradient climbing ability is enhanced to 30%.

Model Weight (Approx) Impact Force Compaction Capacity Viberating Frequency Prime Motor Power Rating Plate Size Working Capacity Depth Effect
VER-3 90 kgs. 950 kg. 1 to 2 ton 2500 pm Electric 3 HP 14 x 24 inch 3000 Sqr./ H 4 inch
VER-5 210 kgs. 3500 kg. 4 to 6 ton 3000 pm Electric 5 HP 20 x 32 inch 3000 Sqr./ H 7 inch
VER-7 300 kgs. 4500 kg. 8 to 10 ton 3500 pm Electric 7.5 HP 20 x 38 inch 5500 Sqr./ H 10 inch
